Stefano Oldani’s 2020 Bike size

The Italian professional road bike racer is racing the 2020 UCI World Tour for the Team Lotto-Soudal mainly on a Ridley Helium SLX Disc despite having also a Ridley Noah Fast Disc too.
Stefano is 1m78 tall and is fairly lightweight type of rider equally fast in a sprint finish or a climb.
He is a great support and a strategic companion to his Team mates Philippe Gilbert and Thomas De Gendt that are of similar size.

  • Stefano races on a size S Ridley Helium SLX Disc
  • The stem is a 100mm length Deda
  • The Deda Handlebar is 420mm width
  • The Campagnolo Super Record Carbon crankset is 172.5mm long
  • The S Size Ridley Helium SLX Disc frame is recommended by Ridley for riders between 165 to 180cm tall.

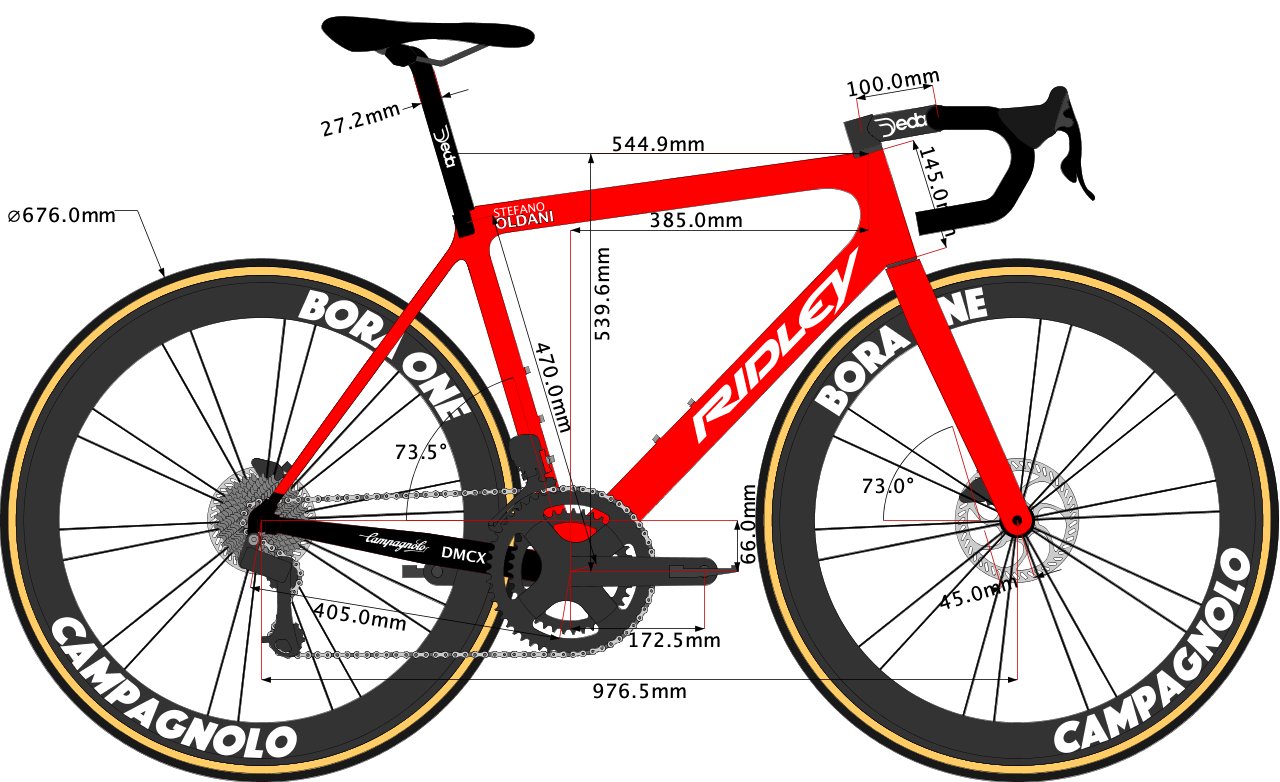

sketch of Ridley Helium SLX Disc 2020 size 54cm
Stefano Oldani’s Size S Ridley Helium SLX Disc 2020

The Helium SLX Disc 2020 frame weight 805gr in size S.
It is the same geometry design with the Ridley Noah Fast Disc 2020 which makes it easy for riders of the Team Lotto-Soudal to swap between the two bikes.
The Helium SLX Disc is designed for mountainous type of races as it is lightweight.
Interesting feature of the frame, the S and L sizes don’t have the Seat Stays lowered like on the XS, M and XL frame size.

The frame is fitted with a PF30 (68mmx42mm) C-Bear Ceramic bearings Bottom Bracket.

It is a very nice bike set-up and Stefano Oldani is a great racing to watch.

Frame: Ridley Helium SLX Disc, Size S (54cm) weighting 805g : 510mm Seat Tube Length BB-Virtual Top Tube horizontal center / 470mm BB C- actual Top tube Center / 545mm Top Tube length / 145mm Head Tube length / 73 degres head angle / 73.5 seat tube angle / 66mm BB drop / 405mm chainstays / 975mm wheelbase / 384mm Reach / 540mm Stack / Derailleur Hanger code HAARCERID041 / 12mm x 142mm thru rear axle, 1.5mm pitch / 164mm overall length / 700x28c max tire clearance / PF30 68mm width BB.
Fork: Flat mount Disc, 12mm x 100mm OLD (Over Lock Distance) thru axle 1.5mm pitch, 120mm overall length, Upper: 1 1/8″ – Lower: 1 1/4″, carbon steerer, 45mm rake.
Shifters/Brake levers: Campagnolo Super Record EPS 12 speed Electric shifting
Brakes: Campagnolo Super Record Hydraulic Disc brakes 160/140 mm disc rotor diameter.
Front Derailleur: Campagnolo Super Record EPS Braze on.
Rear Derailleur: Campagnolo Super Record EPS 12 speed
Cassette: Campagnolo Super Record 12 speed
Chain: Campagnolo Super record
Crankset: Campagnolo Super Record 172.5mm length 53/39T
Bottom-Bracket: PF30 C-Bear bearings
Wheels: Campagnolo Bora One Disc 50mm Carbon Tubular Disc fitted with C-Bear Ceramic bearings
Tires: Vittoria Corsa 26mm tubular
Computer and Power meter: SRM
Pedals: Look Keo Blade Carbon Ceramic
Seatpost: DEDA Superleggero 27.2mm diameter.
Stem: DEDA SuperZero 100mm
Handlebar: DEDA SuperZero
Bar tape: Lizard Skins DSP 2.5mm
Saddle: Selle Italia Team Edition
Bottle cage: Tacx Ciro
Approximate Weight: 7.15kg
